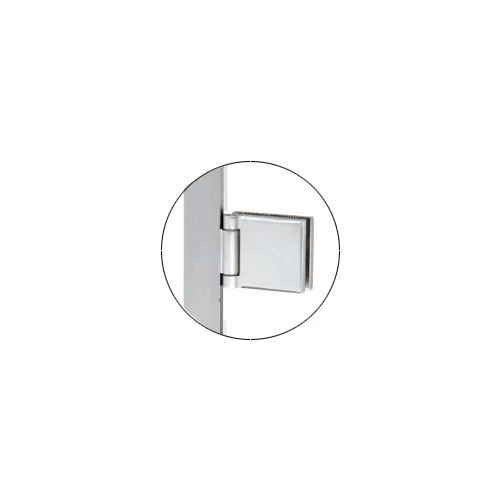

CRL HDK64BA Brite Anodized 64″ High Frameless KD Door Kit Hinge For 1/4″ Glass

Our CRL Frameless Hinge KD Door Kit allows the look of heavy glass, while utilizing lower cost 1/4″ (6 mm) thick glass. The hinges are applied through a 1″ (25.4 mm) hole, and feature a molded nylon insert that allows a 3/16″ (5 mm) horizontal adjustment in each direction. This design holds the glass firmly without relying on clamp pressure. Kits include a hinge jamb assembly with hinges and fin seal attached, an aluminum strike jamb, a “slip over the edge” magnetic latch handle, seals for around the door, and a hardware package. Glass is not included in the kit.
SPECIFICATIONS:
Glass Thickness: 1/4″ (6 mm) (Glass Not Included in Kit)
Construction: Aluminum
Closing Type: Manual Close with Magnetic Hold
Maximum Sizes:
Width: 36″ (914 mm)
Height: 72″ (1.83 m)
Kit Fabrication: Two 1″ (25.4 mm) Diameter Holes Required, 1-1/4″ (32 mm) from Edge of Glass to Center of Hole. Use Two Hinges Only.
